S32G車載中央網(wǎng)關(guān)

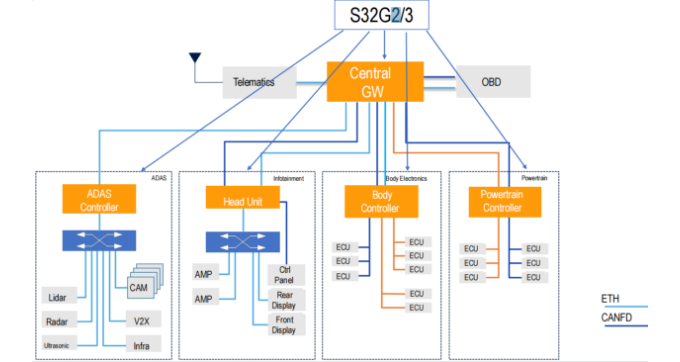

Application
? Service-oriented gateways? Domain controllers
? C-V2X + T-BOX
? IDPS, Firewall
? OTA Master
? Support DDS, SOMEIP
Core
? CPU: Support S32G233M, S32G274A, S32G399
? PMIC: VR5510
? Memory: 4GB LPDDR4, 32GB EMMC, 64MB OSPI FLASH
External Conn
? 4 x 1G base-T1
? 3 x 100M base-T1
? 1 x 100M base TX
? 12 x CANFD
? 4 x Master LIN, 1 x Slave LIN
? 1 x PCIe 3.0 for WIFI+BT, V2X Module, SSD
? 2 x USB3.0
? TF Card Support

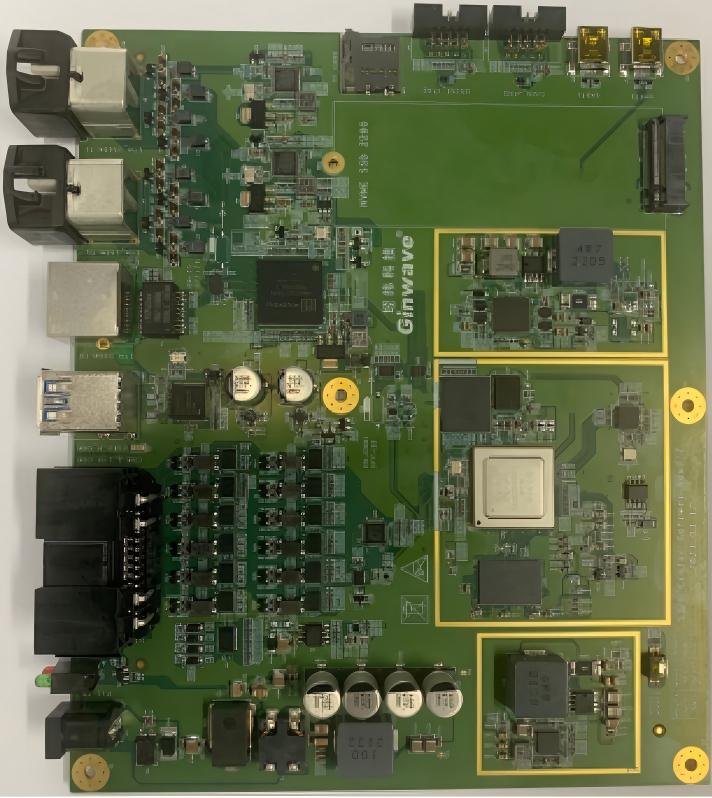

PCB Board
? Size: 180MM x 150MM
? FR4 8 Layers through hole
